Nuts Roasting Machine – NRM 197
The NRM-197 model Electric Nut Roasting Machine is designed for small and medium-scale industries. Our machine is a belt nut roasting oven that operates with a dual-stage burner and has a roasting capacity of 140 kg per hour.
The NRM-197 roasting oven consists of two roasting chambers, one resting chamber, and one cooling chamber that use air circulation fans to roast nuts evenly. It is possible to remove excess moisture that occurs during the roasting process thanks to the humidity removal fan. Resting and cooling chambers have been added to the machine to allow roasted nuts to be quickly ready for packaging. This way, the temperature of the roasted nuts is reduced to room temperature, speeding up the packaging process.
The machine is heated by burners that run on LPG, natural gas, and diesel fuel. Optionally, heating can also be provided with electricity. The combustion chamber and nut heating chamber are completely isolated from each other.
The machine’s entire control can be provided through the touch panel, and recipes can be created for products, allowing for specific roasting settings to be recorded for your business. Our control system offers integration opportunities for your industrial enterprises and is compatible with security and central control systems.
The NRM-197 Electric Nut Roasting Machine offers an excellent solution that speeds up both the roasting and packaging processes, increasing efficiency in your industries.
Proportions
NRM 190 Capacity
| # | Capacity | Kg/Hour | Machine |
|---|---|---|---|
| 1 | Salted Peanuts | 150 | NRM 197 |
| 2 | Shelled Peanuts | 110 | NRM 197 |
| 3 | Pistachios | 150 | NRM 197 |
| 4 | Salted Chickpeas | 150 | NRM 197 |
| 5 | Sunflower seeds | 140 | NRM 197 |
| 6 | Pumpkin seeds | 150 | NRM 197 |
| 7 | Almond | 150 | NRM 197 |
| 8 | Shelled Almonds | 120 | NRM 197 |
| 9 | Hazelnut | 150 | NRM 197 |
| 10 | Shelled Hazelnut | 120 | NRM 197 |
| 11 | Cashew | 140 | NRM 197 |
Energy Properties

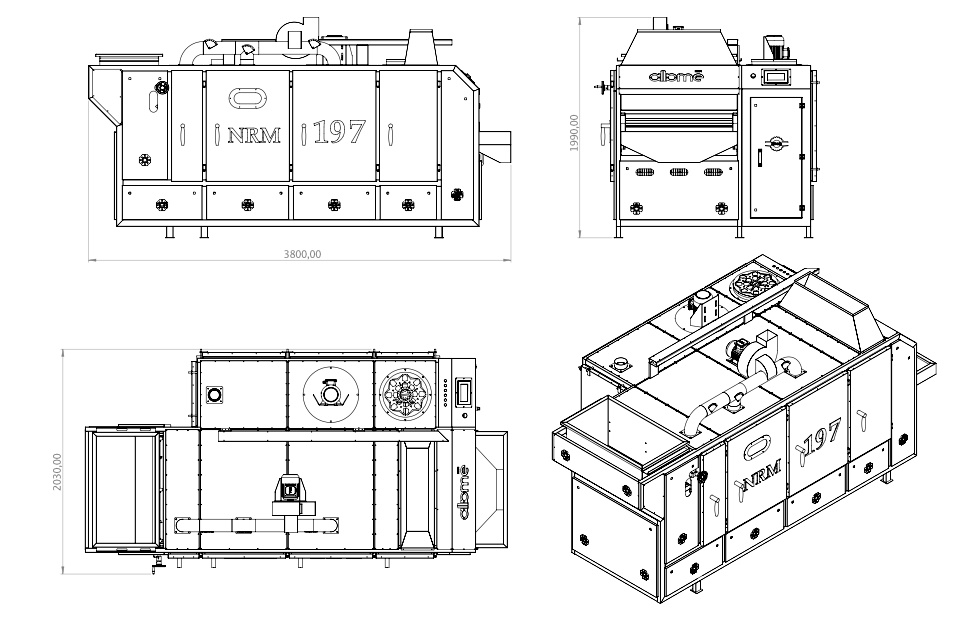

Technical Drawing
