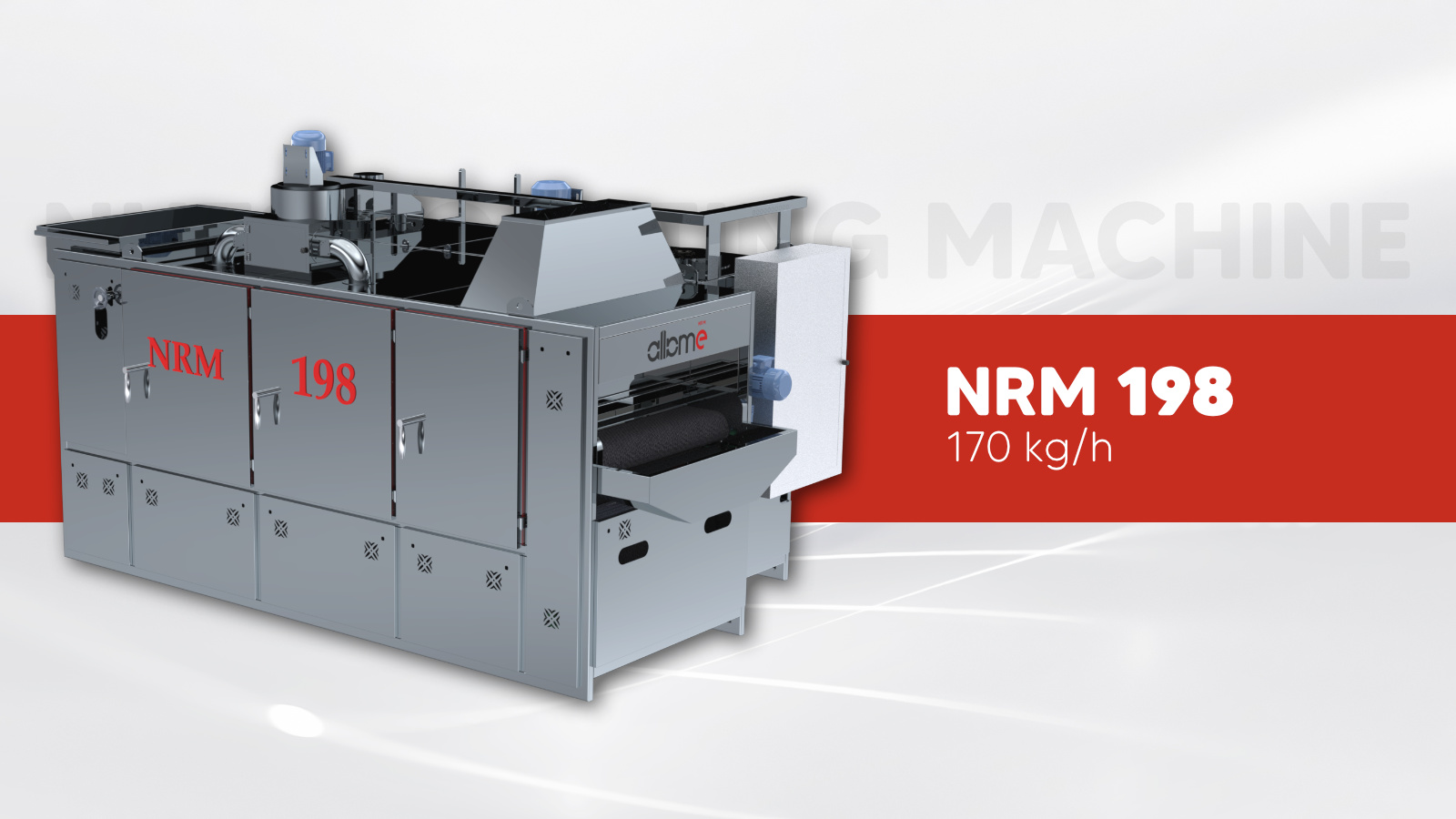

Nuts Roasting Machine – NRM 198
The NRM-198 is a belt-type nut roasting machine designed for medium-sized industries, with a capacity of 170 kg of nuts roasted per hour. The nut roasting oven is operated with a dual-stage burner to ensure even roasting and utilizes air circulation fans for homogeneous roasting. In addition, a humidity removal fan is synchronized with the roasting process to remove excess moisture. The machine consists of two roasting chambers, one resting chamber, and one cooling chamber.
Resting and cooling chambers are added to quickly make roasted nuts suitable for packaging by lowering their temperature to ambient temperature. The heating system is equipped with burners that can run on LPG, natural gas, and diesel fuels, but optional resistive heaters can also be used. The nut heating chamber is completely isolated from the combustion chamber.
The machine can be controlled via a touch screen panel, and customized roasting settings can be saved. Our control system offers integration opportunities for industrial businesses and works compatibly with security and central control systems.
Proportions
NRM 198 Capacity
| # | Capacity | Kg/Hour | Machine |
|---|---|---|---|
| 1 | Salted Peanuts | 200 | NRM 198 |
| 2 | Shelled Peanuts | 145 | NRM 198 |
| 3 | Pistachios | 220 | NRM 198 |
| 4 | Salted Chickpeas | 190 | NRM 198 |
| 5 | Sunflower seeds | 170 | NRM 198 |
| 6 | Pumpkin seeds | 185 | NRM 198 |
| 7 | Almond | 200 | NRM 198 |
| 8 | Shelled Almonds | 165 | NRM 198 |
| 9 | Hazelnut | 230 | NRM 198 |
| 10 | Shelled Hazelnut | 190 | NRM 198 |
| 11 | Cashew | 180 | NRM 198 |
Energy Properties

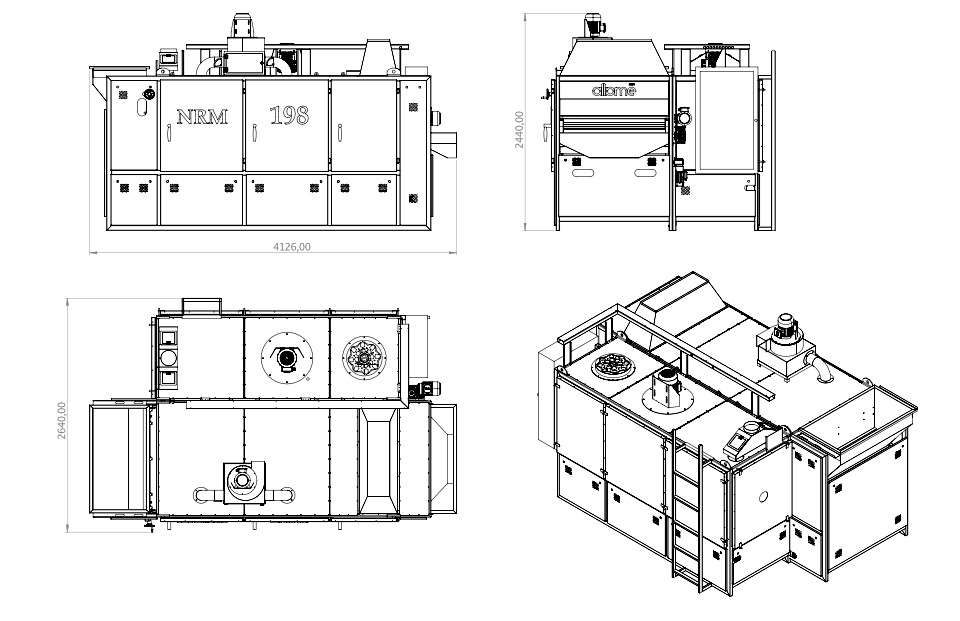

Technical Drawing
