Nuts Roasting Machine – NRM 500

Project Description

Nuts Roasting Machine Nrm 500

Nuts Roasting Machine – NRM 500

Introducing the NRM-500 Electric Nut Roasting Machine, the perfect solution for roasting a variety of nuts including sunflower seeds, almonds, peanuts, pistachios, chickpeas, hazelnuts, cashews, and pumpkin seeds to perfection, whether you prefer them salted or unsalted. With its advanced design and engineering, the NRM-500 offers superior taste and performance, making a significant difference in the quality of your roasted nuts.

The NRM-500 features two high-performance roasting chambers, a resting chamber, and a cooling chamber, all designed to ensure that your nuts are roasted to perfection without any loss of flavor or aroma. The roasting chambers are engineered with state-of-the-art features to ensure that the nuts are roasted evenly and with high efficiency. Additionally, the NRM-500 requires minimal human labor and has low energy consumption, resulting in reduced production costs.

The optional advanced touch screen panel of the NRM-500 allows you to easily control and monitor the entire roasting process. With the ability to store different roasting recipes in its memory, the touch screen computer enables you to achieve the best results every time with minimal effort. The NRM-500 is the ideal solution for those seeking a high-quality, efficient, and easy-to-use nut roasting machine.

Proportions

Length

7400 mm

Width

2870 mm

Height

2975 mm

Weight

- kg



NRM 500 Capacity

# Capacity Kg/Hour Machine
1 Salted Peanuts 600 NRM 500
2 Shelled Peanuts 410 NRM 500
3 Pistachios 650 NRM 500
4 Salted Chickpeas 500 NRM 500
5 Sunflower seeds 480 NRM 500
6 Pumpkin seeds 500 NRM 500
7 Almond 650 NRM 500
8 Shelled Almonds 480 NRM 500
9 Hazelnut 650 NRM 500
10 Shelled Hazelnut 480 NRM 500
11 Cashew 500 NRM 500



Energy Properties

Fuel Type

Motorin

Minimum

9,5 lt/h

Maximum

21,3 lt/h

Average

15,4 lt/h



Fuel Type

Electrcy

Minimum

10 kW

Maximum

15 kW

Average

11 kW



Fuel Type

Lpg

Minimum

3,2 Nm3/h

Maximum

7 Nm3/h

Average

5,2 Nm3/h



Fuel Type

Natural Gas

Minimum

8,1 Nm3/h

Maximum

17,5 Nm3/h

Average

12,8 Nm3/h

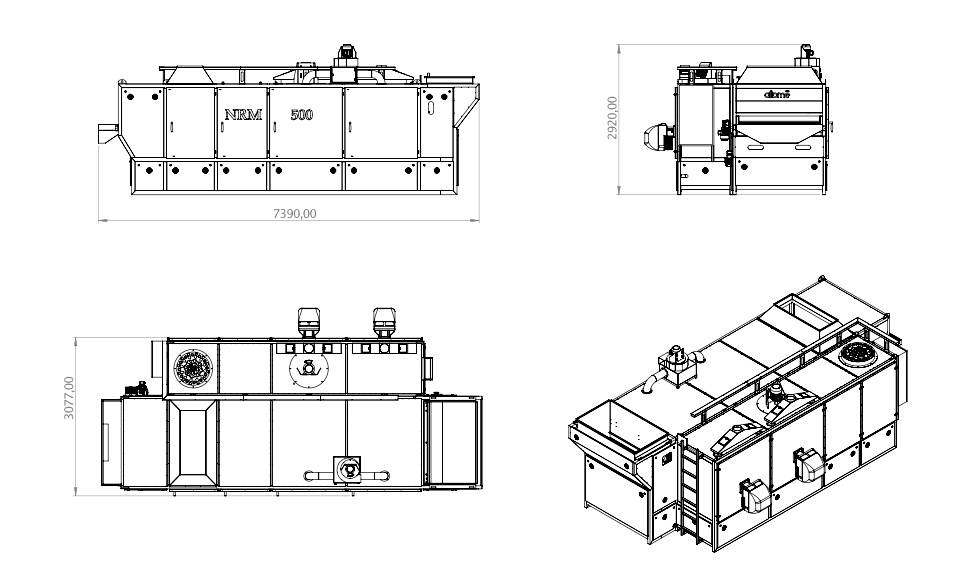

Technical Drawing

Nuts Roasting Machine Nrm 500 technical drawing
